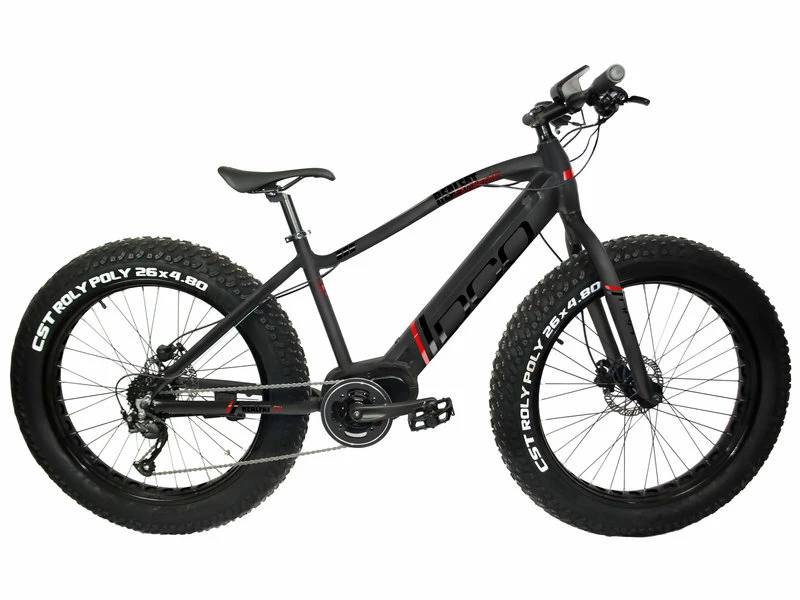

DCO Realfat Extreme 1000W – Electric Fatbike

5 levels of assistance, 9 speeds,  Hydraulic Tektro disc brakes. This bike is a off road model it should not be used in bike path. Weight 31kg

Features:

• Bafang Digital console
• Bafang crankset M620, 48V/1000W, 160Nm of torque
• 48V lithium battery – 14.5 A/hr
• 5 Levels of assistance
• Shimano 9 speeds derailleur
• Tektro disc brakes

Warranty:

•  1-year warranty on all electronic parts (including battery, motor, display, lights)
•  2-years warranty on the bike frame
•  Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, etc) are not included in the warranty but may be replaced on a case basis within the first 6 months.

SPECIFICATION:  SUBJECT TO CHANGE BY THE PRODUCTION




FRAMEAluminium

FORK FAT BIKE Alloy,

INTEGRATE BATTERY DOWNTUBE

BRAKE LEVER :Tektro M285 Hydraulic disc brake

SADDLE : MTB SEATPOST 30.4mmx400mm Alloy SEATPOST

CLAMP : Alloy 34.9mm with Q/R

BRAKE Tektro M285 Hydraulic disc brake

DISC : 160mm

DERAILLEUR :Shimano

RD-M2000SGS

CHAIN : KMC Z99

FREEWHEEL : Shimano 9s, 11/34t

CRANKSET : BAFANG Center motor 38T Alloy

MOTOR : Bafang crankset M620, 48V/1000W, 160Nm of torqueRIMAlloy,36h, double wall with holes, 26 »

TIRES : CST C1936, 26X4.8mm

HUB : 36H Alloy,

THRU-AXLE 15mm, Disc 6 bolts

PEDALS :Alloy 9/16 »

REFLECTORS :360 degree

OTHER : Consol
Kickstand

WEIGHT:31KG

BATTERY:LI-ION, 48V, 14.5A

Charging time 5-6 hours

HEADSET :1-1/8″，THREADLESS

HANDLEBAR : 31.8mm, WIDE 740mm, Back sweep 15 deg.

STEM : Ahead, 31.8mm, EXT: 50mm, 30 DEG

GEAR LEVER :Shimano SL-M2000, 9 Sp.
